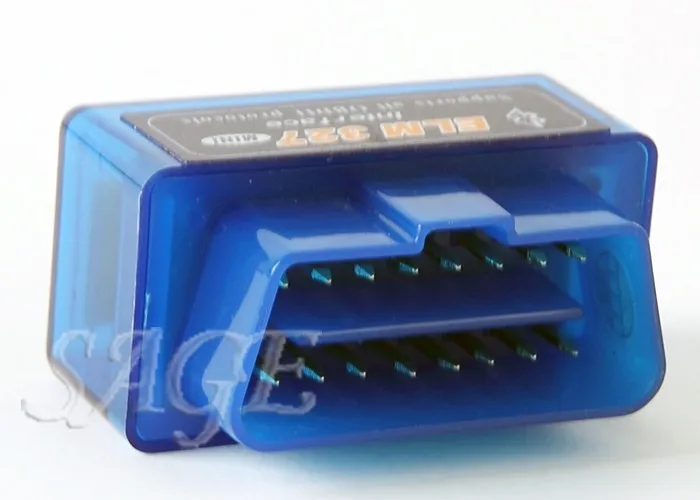

Viecar V1.5 Super MINI ELM327 Bluetooth ELM 327 PIC18F25K80 Version 1.5 OBD2 / OBDII for Android Torque Car Code Scanner

US $7.60
US $6.08

So, what we talk about?

Go to store



pictures



ScanMaster

2 1



Function:
1. Display current sensor data, including: Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure etc.
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Compatible Phones: Android Smartphone
4. Compatible Software: Easy OBD2, ScanMaster ELM, wOBD Crazy and More
5. Processor: ELM327 v1.5
6. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
7. Supported Software Compatible for Windows, OSX, Palm, Pocket-PC, Linux, Android, DOS, and Windows Smartphone
8. Supports all OBD2 Protocols (ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM)
9. Works with Android Torque (Suggested)
10. Works with OBD2 Complaint Vehicles


B20



description

V1.5 Super MINI ELM327 Bluetooth ELM 327 Version 1.5 OBD2 / OBDII for Android Torque Car Code Scanner



Note:

1. If you are from Russian Federation, please leave a full name as the receiver name.

Otherwise, you may not receive your items because of the regulation of your customs.

According to the RUSSIAN POST POLICY. They don\'t allow CD inclueded on parcel. So we will not send the CD to Russian customer.



Highlights:
1. The version is 1.5.

2. This item doesn\'t work on IOS. If you need an item which works on IOS, please buy our WIFI OBDII.
3. Project Bluetooth password: 1234



Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car model has one of the following protocols.

*********************************************************************************************

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
*********************************************************************************************



Specifications:
Operating voltage: 12V, internal protection from short circuits/overvoltages
Nominal idle current: 45mA
Item Size: 3.2 * 4.7 * 2.3cm
Item Weight: 22g
Package Weight: 52g



Package:
1 x V1.5
MINI Bluetooth ELM 327 OBD2 / OBDII ELM327 for Android Torque Car Code Scanner

1 x CD driver

According to the RUSSIAN POST POLICY. They don\'t allow CD inclueded on parcel. So we will not send the CD to Russian customer.
