120 Miles Antena Digital HDTV Indoor TV Antenna with Amplifier Signal Booster
TV Radius Surf Fox HD TV Aerial Rural Antennas TDT DVB-T/T2 UHF VHF Antenna
Kindly Remind :

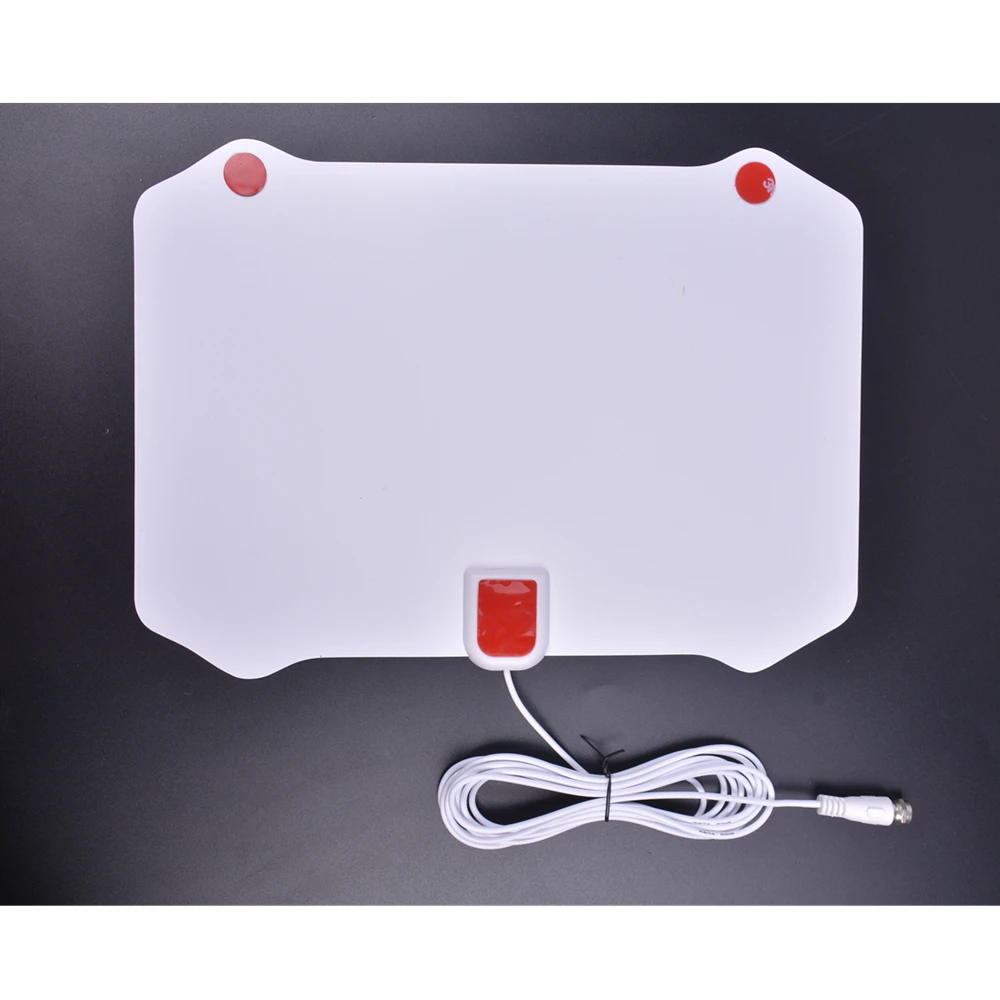

This Antenna has two colors ( Black and White )
If you need White color, pleaase note your request on the order, Otherwise we will send Black by default.
1. Working Frequency : VHF (170-240Mhz) / UHF( 470-860Mhz)
2. VSWR : ≤1.5
3. Impedence : 75 Ω
4. LNA Gain : 25dB
5. Reception Range : 120 miles (Max)

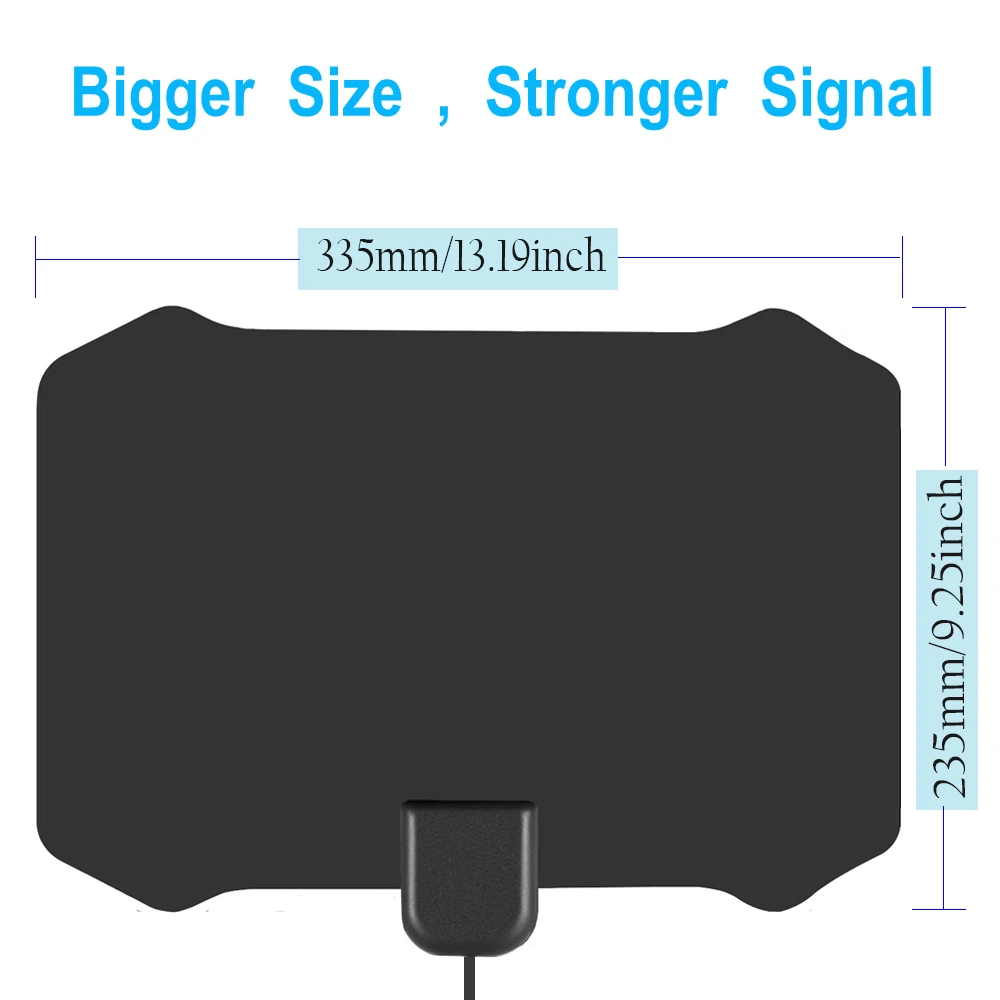

6. Size : 335 x 235 x 0.6mm
7. Color : Black / White ( Please note the color you want on the order )
8. Cable : 1.5C - 2V / Lenth = 4m
9. Connectors : Universal
10. Polarization ： Linear
11. Voltage : 5V
12. Power Supply Connector : USB

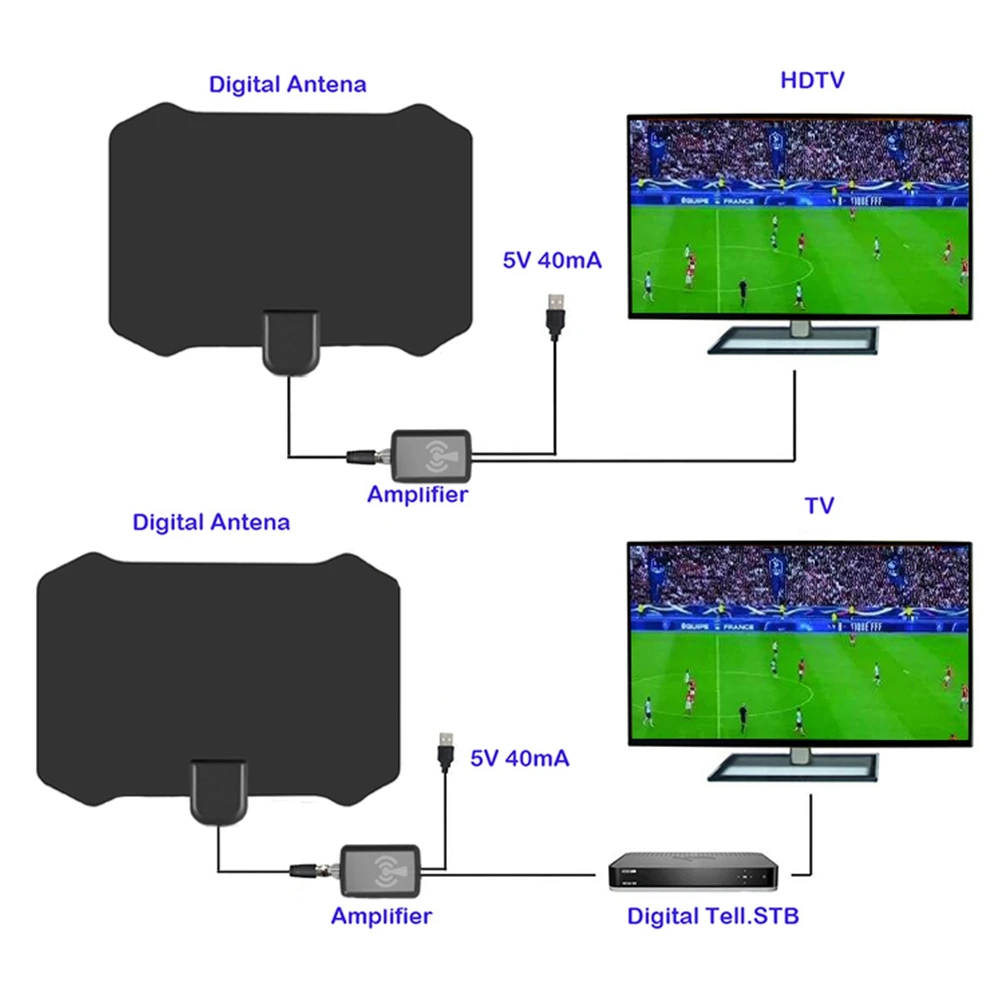

Set up guide :
Step1 : Connect the end of attached coaxial cable to the ANT/IN connector on the back of the TV or Digital Converter Box, Plug the USV plug into the USB port of the TV or Digital Converber Box.
Step 2 : Hand held the antenna, near the window, place it horizontally or vertically.
Step 3 : In the TV’ s or STB ’ s setup menu, set the tuner mode to “ Antenna ” or “ Air ” For more detailed instructions, please refer to your TV manual.
Step 4 : In the TV ’s or STB ’s setup menu, set TV to “ scan ” for channels. This can sometimes be listed as auto-program,auto-scan,channel search or channel scan. Consult the TV manual or detailed instructions.
Step 5 : If reception is sporadic, try moving the antenna to another location and rescanning the TV until optimal postition is found.
Step 6 : Fix the antenna at the optimal position you found.
Adjustment of antenna directions
Connect the antenna to TV properly.
Set TV to Antenna mode.
When the signal quality is low, adjust the location of the antenna or rotate it towards
you an watch the clear tv program until the signal quality gets improved.
Note: for the best reception, please check the following tips :
This digital hdtv antenna is intended for indoor use only.
Placing the antenna higher or close to/in a window may result in better reception. You must rescan whenever you move the antenna.
Keep the antenna away from any sources of interference: keep the antenna away from those big power consumption devices, such as air conditioner elevator, hairdryer and microwave oven…etc.
If you use a flat HDTV, please go through your tv manual to make sure your TV comes With built-in tuner for free view.
Make sure you are using a HD receiver; otherwise no HD channels can be picked up. Please read receiver manual.
you need to retune your free view TVs and digital receiver form time to time to ensure your are receiving all available services. Retuning takes only a few minutes and can be done with your remote control.
TV reception capacity depends on the distance among your hone, transmitting tower and Surrounding environments.
For maintenance of the antenna, please use soft cloth with diluent mild detergent to clean
Pacakge Content :
1 x TV Antenna

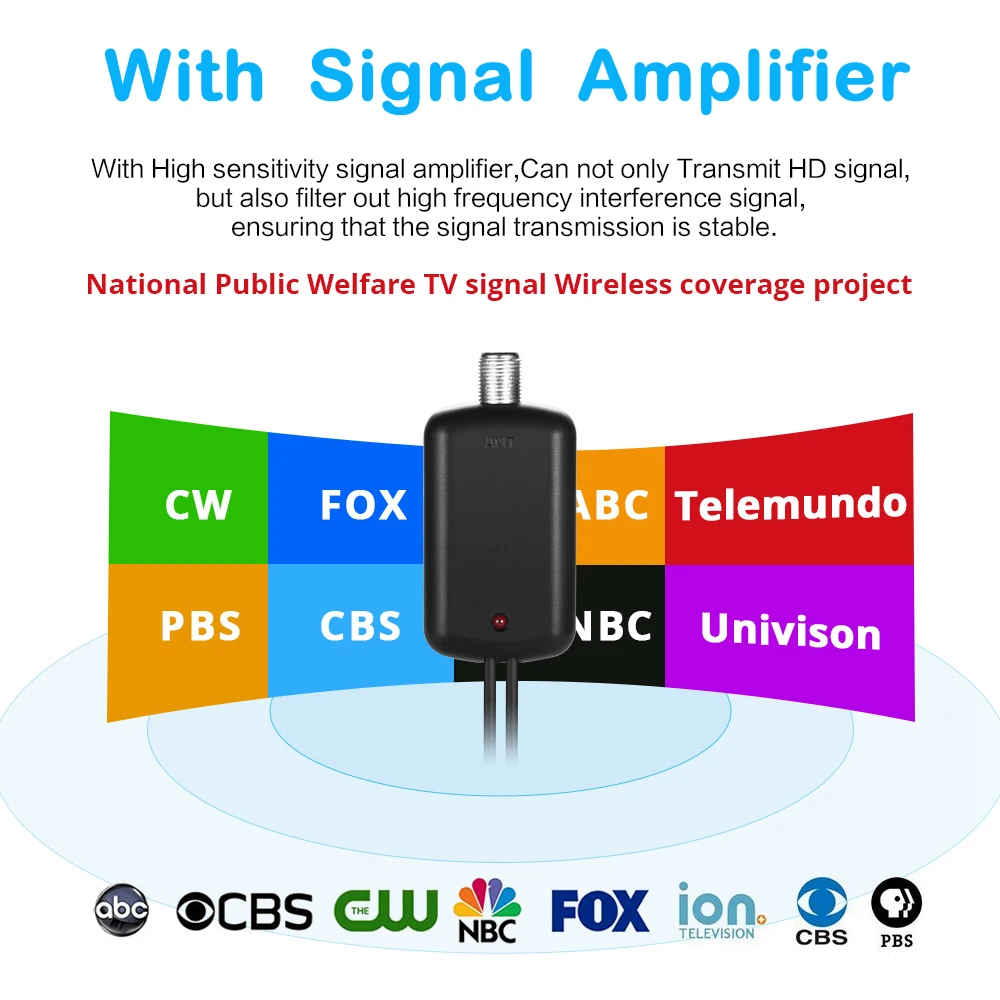

1 x Signal Amplifier
1 x Universal Connector
